MPPT Solar Charge Controller 100A Solar Panel Controller,Automatic focusing MPPT tracking charging,Large-screen LCD display,SOC function,control charge current & supply power to the loads

✅MPPT solar charge controller: Compared with normal solar charge controller, this MPPT controller could increase efficiency by 10%-30%.
✅Automatic focusing MPPT tracking charging, high charging efficiency, non-stop detection during charging, bidirectional focusing tracking.
✅Large-screen LCD display, adjustable charging and discharging parameters.
✅This MPPT controller has perfect SOC function, control charge current, and supply power to the loads.
✅Prevent the battery from over-charging, over-discharging and reverse charging to solar panels during nights.

Rated voltage: 12/24V
Rated current: 100A
Max. PV voltage: 50V
Max. PV input power: 750W(12V) / 1500W(24V)

Other:
1. Always keep the battery on fill voltage condition.
2. Prevent the battery from over-charging.
3. Prevent the battery from over-discharging.
4. Prevent the battery from reverse charging to solar panels during nights.
5. Reverse Polarity Protection for Battery
6. Reverse Polarity Protection for Solar Panels
7. When the battery voltage is low, the controller will automatically cut off the load from the system. If the voltage of battery is back to normal and the load will restart working.
8. Thunder protection
9. According to the battery voltage grade, the controller can automatically set charge-off voltage, the load-off voltage, the load- restore voltage. (The parameter is default under 25℃ condition, locked by the CPU procedure, cannot adjust.)
10. The controller will automatically compensate the temperature of the charging voltage according to the changes of ambient temperature.

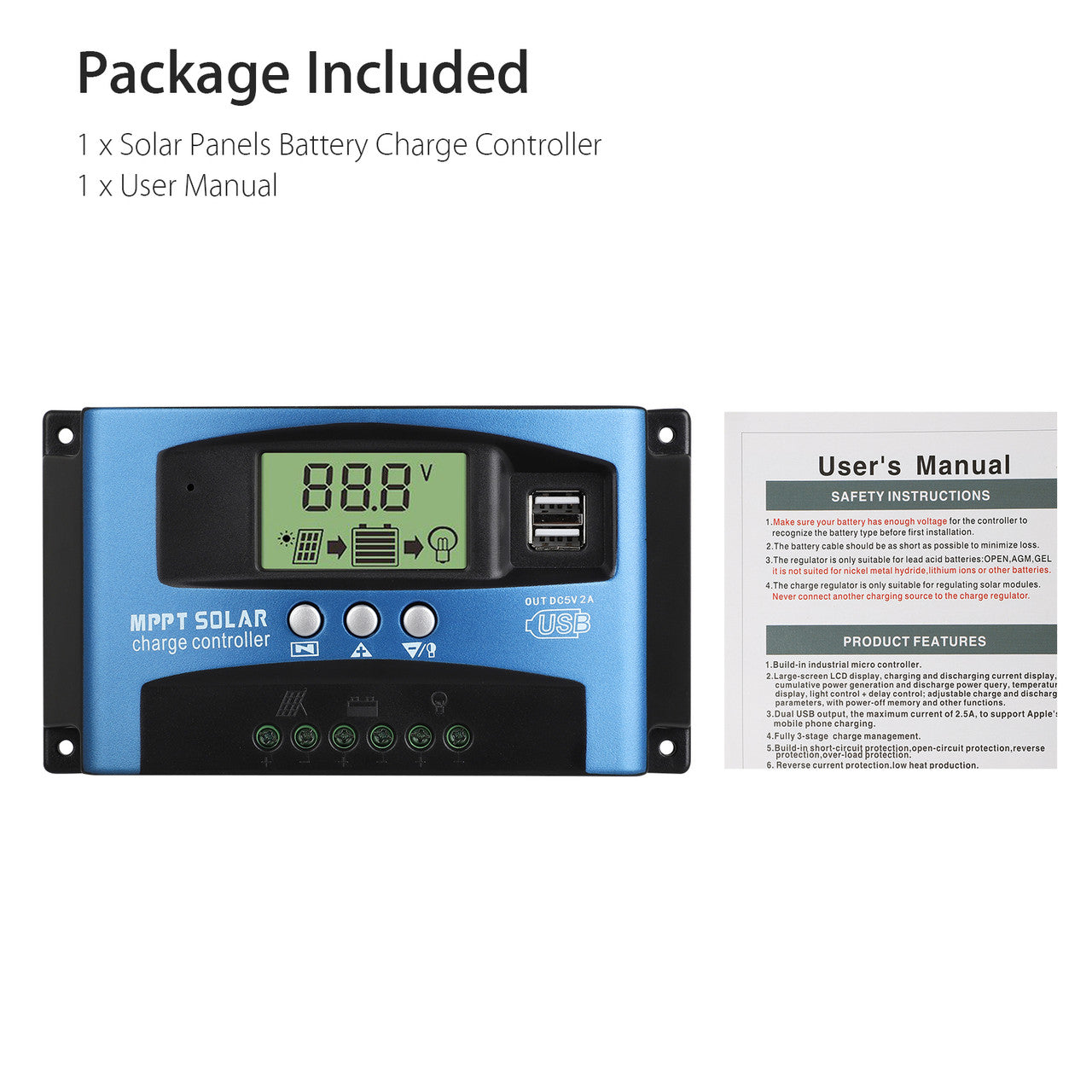

Package Includes:
1 x Solar Panels Battery Charge Controller
1 x User Manual

⚠️WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Q1: What is an MPPT solar charge controller, and how does it differ from a regular controller?
A1: An MPPT (Maximum Power Point Tracking) solar charge controller enhances charging efficiency by 10%-30% compared to standard controllers by optimizing the power output from solar panels.

Q2: What is the maximum voltage and power the MPPT controller can handle?
A2: The controller supports a maximum PV voltage of 50V and can handle up to 750W at 12V or 1500W at 24V.

Q3: What features does the large-screen LCD display provide?
A3: The LCD display shows real-time charging and discharging parameters and allows you to adjust these settings for optimal performance.

Q4: How does the controller protect the battery and system?
A4: The controller prevents over-charging, over-discharging, and reverse charging of the battery. It also includes reverse polarity protection and automatic load cut-off when battery voltage is low.

Q5: What additional protections and functions does the MPPT controller include?
A5: The controller features thunder protection, automatic temperature compensation for charging voltage, and automatically adjusts charge-off and load-off voltages based on battery voltage grades.
