IP67 Waterproof HD Hidden License Plate Vehicle Backup Cameras, Night Vision 170掳 Wide View Angle Rear View Camera for 12V

✅2 Installation options,you could choose bracket mounting or flush mounting as per your case.
✅IP67 Waterproof Standard: Don’t worry about fog or mist penetrating the camera.
✅ 170° Wide View Angle: Help you see blind area where your eyes can't reach.
✅ Rear/Front Switchable: Optional Customized Distance Scale Lines & Mirror/Normal Image Switchable.

Type: Car front/side/rear Camera
Image Sensors: PC1030 1/4 Inch Color CMOS
Effective Pixels: 648 x 488 Pixels
Lens Angle: 170 degrees
Image Pipeline Feature: Auto exposure, AWB, AGC, Auto ficker detection and cancellation
Video System: PAL/NTSC(Automatic throw-over)
Resolution: 420TV lines
Waterproof Class: IP 67
Operation Temperature: -20℃~ +75℃
Storage Temperature: -40℃~+85℃
Video Output: RCA connector
Working Power: DC12V
Current Consumption: 60mA
Video Cable Length: Approx. 6 m/ 236.2 inch
Power Supply Cable Length: Approx. 1.2m/ 47.2 inch

Note:
After cutting either the white or green wire for your configuration, you need to ground one side of the cut wire for the camera to convert. One side will give you a blank image and one side will give you your converted camera. Just tie one side of your cut wire to the black ground/earth wire and power it up.

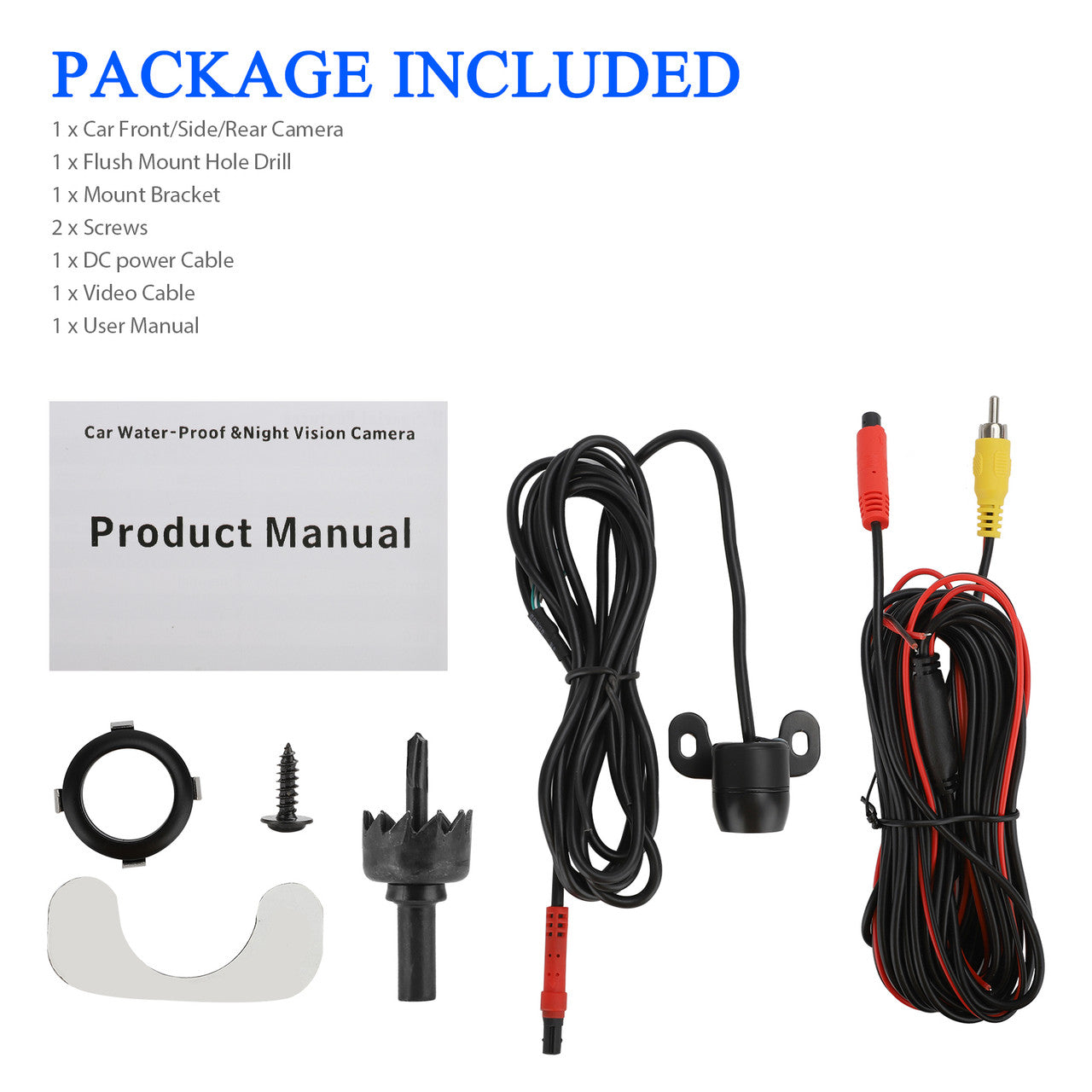

Package Includes:
1 x Car Front/Side/Rear Camera
1 x Flush Mount Hole Drill
1 x Mount Bracket
2 x Screws
1 x DC power Cable
1 x Video Cable
1 x User Manual

⚠️WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Q1: What are the installation options for this camera?
A1: The camera offers two installation options: bracket mounting or flush mounting.

Q2: What is the waterproof rating of this camera?
A2: The camera has an IP67 waterproof rating, ensuring protection against fog and mist penetration.

Q3: What is the viewing angle of the camera?
A3: The camera features a 170° wide view angle, helping you see blind spots that are not visible to the naked eye.

Q4: Can the camera's image settings be customized?
A4: Yes, the camera supports optional customized distance scale lines and allows you to switch between mirror and normal images.

Q5: What are the camera's operating conditions?
A5: The camera operates within a temperature range of -20°C to +75°C and can be stored in temperatures between -40°C and +85°C.
