DS3225 25KG High Torque Metal Gear Servo Motor, Tailored for RC Cars for Better Accuracy

- Features HV high torque, metal gear, fast heat dissipation, sensitivity and responsiveness
- CNC aluminum middle shell enhances heat dissipation and ensures the servo motor can work well
- Waterproof rubber seal screws, made of first-grade material ensure the longevity of the products

Type: DSSERVO DS3225 Digital Servo
Operating voltage: 4.8 - 6.8V
Operating speed ( 5.0V ): 0.15 sec/60 degree
Operating speed ( 6.8V ): 0.13 sec/60 degree
Stall torque ( 5.0V ): 21kg/cm
Stall torque ( 6.8V ): 25kg/cm
Dead band: 3渭s
Working frequency: 50-333Hz
Connector wire: About 300mm
Gear type: Metal
Motor Type: DC motor
Size: 40 x 20 x 40.5mm ( 1.58 x 0.79 x 1.60 in)

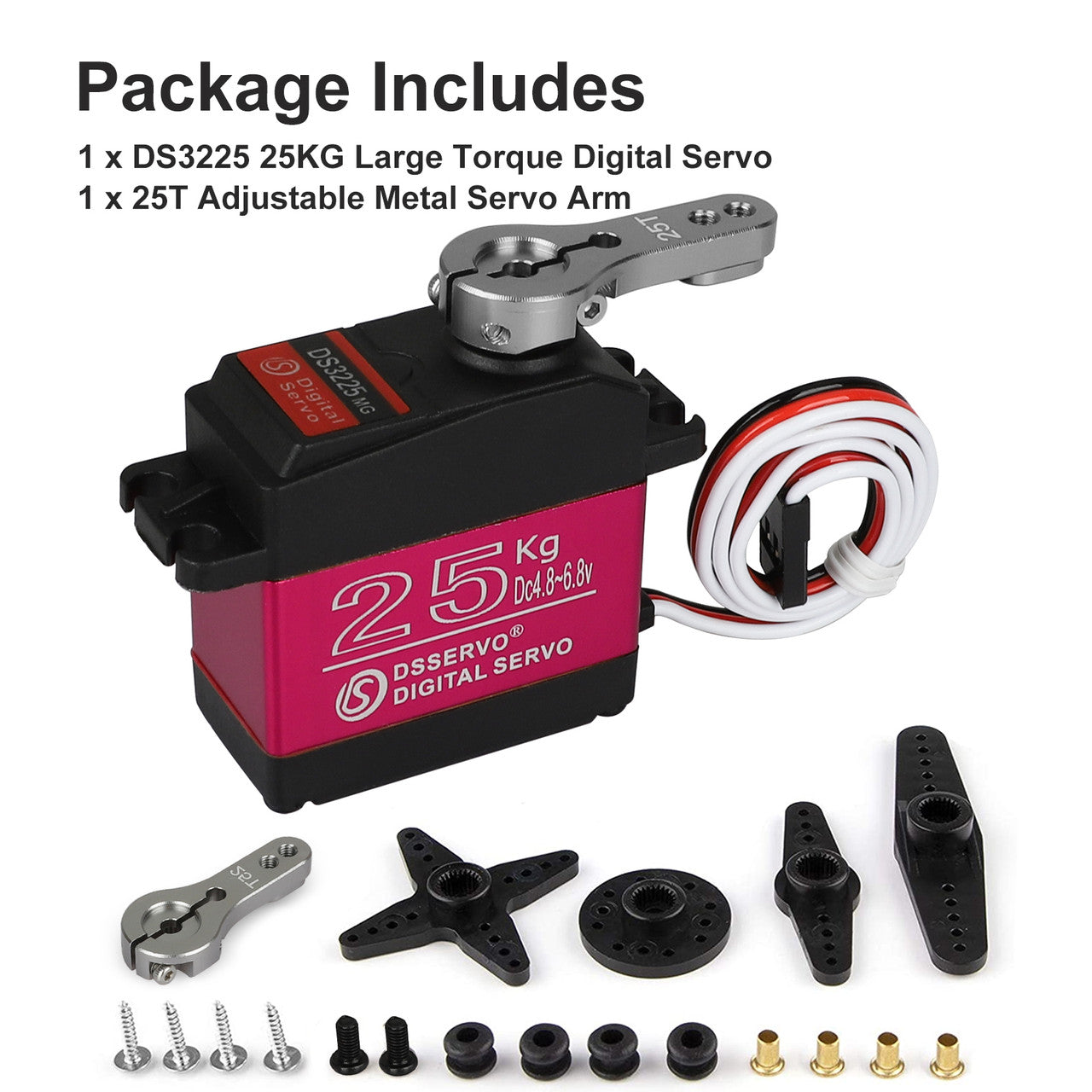

Package Includes:
1 x DS3225 25KG Large Torque Digital Servo
1 x 25T Adjustable Metal Servo Arm

This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Q1: What are the key features of the DSSERVO DS3225 Digital Servo?
A1: The servo features high torque, metal gears, fast heat dissipation, and high sensitivity and responsiveness. The CNC aluminum middle shell enhances heat dissipation, and waterproof rubber seal screws ensure longevity.

Q2: What is the operating voltage range for this servo?
A2: The operating voltage range is 4.8V to 6.8V.

Q3: What are the operating speeds at different voltages?
A3: At 5.0V, the operating speed is 0.15 sec/60 degrees. At 6.8V, the operating speed is 0.13 sec/60 degrees.

Q4: What is the stall torque of the servo at different voltages?
A4: The stall torque is 21 kg/cm at 5.0V and 25 kg/cm at 6.8V.

Q5: What are the dimensions of the DSSERVO DS3225 Digital Servo?
A5: The dimensions are 40 x 20 x 40.5 mm (1.58 x 0.79 x 1.60 in).
