Backup Camera Monitor Kit for car, Universal License Plate Reverse Waterproof Night Vision Rearview HD Reversing Camera+4.3 inch LCD Rearview Monitor

Product Description:

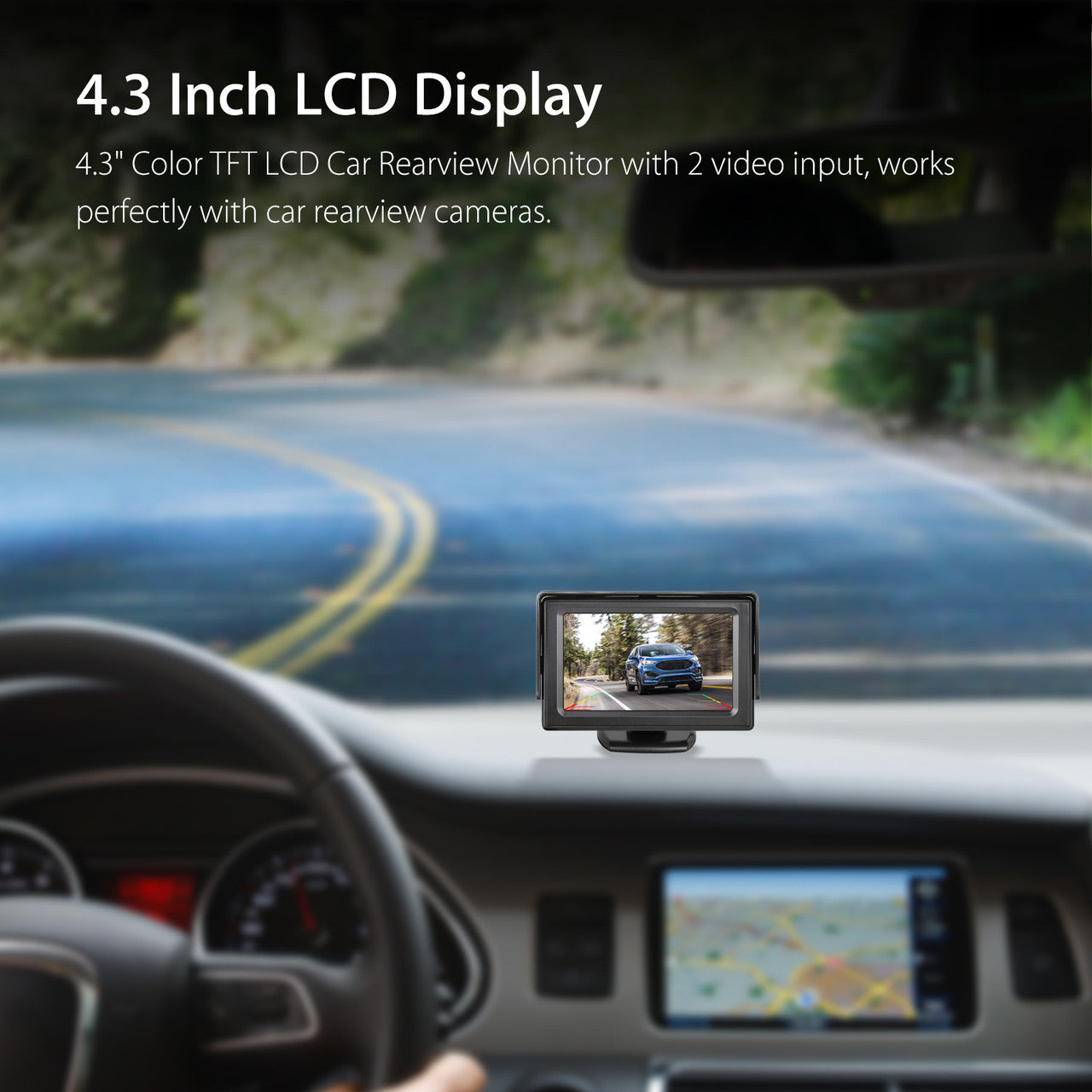

4.3" Color TFT LCD Car Rearview Monitor with 2 video input, works perfectly with car rearview cameras, supports car Camera/DVD/Surveillance camera/STB/Satellite receiver/other video equipment.

Product Features:
4.3-inch High-resolution Color TFT LCD monitor.
Easy to install, screen rotatable.
Full color TFT LCD display, Low power consumption.

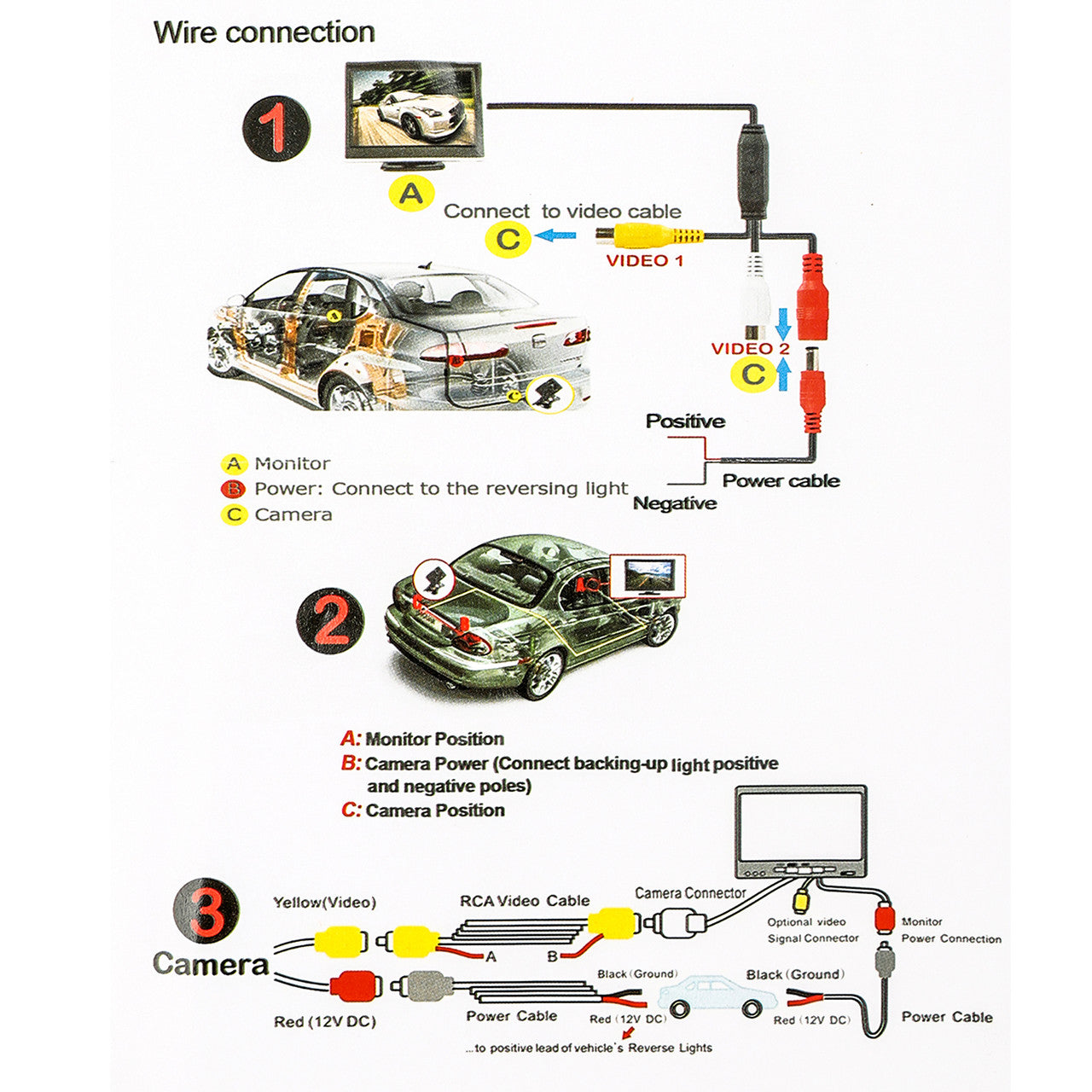

With 2 road video input port, white video cable connects to car rearview camera, the yellow one connects to DVD or VCD, White video cable is priority signal input, when 2 road has signal input, the machine will prioritize the white end signal.
Parking rearview priority, the monitor will start up automatically, and synchronously display the video from rearview camera when you're backing your car.
The monitor will close itself after backing. Scenes will cut to rearview camera automatically while you're backing the car and change back to the original scenes after that.
Supports Car Camera, DVD, VCD, STB, Satellite receiver, and other video equipment.
Designed menu buttons, the brightness/contrast/hue/language is adjustable.
No Audio input or output.
Professional exterior waterproof car rear view camera.
Small compact size.
Low power consumption.
Low maintenance.
7 infrared night vision LED.
Easy to install and operate.
Perfectly solve the issue of bad car rear view effect.

Screen size: 4.3 inch
Resolution: 480 x 234
Standard: PAL/NTSC
Video in: AV1/AV2 (parking first)
Aspect Ratio: 4:3
Power Supply: DC 12V
Brightness: 300 nits
Contrast: 250:1
Color: Black
Housing: ABS
Sensor: PC7080 1/4 Inch Color CMOS
TV system: NTSC
Effective pixels: 628 X 582 pixels
Scanning System: 2:1 Interlace
Sync System: Internal
Resolution: 420 TV lines
Lens Angle: 2.8mm/120°- 1.8mm/170°
Sensor Area: 5.961mm x 4.276mm
Video Output: 1.0 VP-P,75 OHM
S/N Ratio: More than 48db
Water-proof: IP67-IP68
Minimum illumination: 0.2Lux/F1.8(0 Lux with LED)
Current Consumption: No more 300mA
Power supply: DC 12V
Operation Temperature: -20℃-60℃ (RH95%Max.)
Storage Temperature: -30℃-60℃ (RH95%Max.)
Other Items: Automatic white balance. Agc and BLC

Package Includes:
1 x 4.3 Inch Monitor
2 x Power cable
1 x Video cable 6m
1 x Car Rear View Camera
1 x User Manual

⚠️WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Q1: What devices are compatible with the 4.3" Color TFT LCD Car Rearview Monitor?
A1: The monitor supports a variety of video equipment including car rearview cameras, DVD players, VCD players, surveillance cameras, STB (Set-Top Boxes), and satellite receivers. It has two video input ports, allowing you to connect multiple devices simultaneously.

Q2: How does the monitor prioritize video signals when multiple inputs are connected?
A2: The monitor has two video input ports, with the white video cable designated for the car rearview camera and the yellow one for DVD or VCD. The white video cable is the priority signal input, meaning the monitor will prioritize the video signal from the rearview camera over the other inputs when both have signals.

Q3: What are the key features of the rearview monitor?
A3: The key features include a 4.3-inch high-resolution color TFT LCD display, low power consumption, easy installation with a rotatable screen, parking rearview priority (automatically switches to rearview camera when backing up), adjustable brightness/contrast/hue/language via menu buttons, and compatibility with various video equipment. It also includes a professional exterior waterproof car rear view camera with infrared night vision LEDs.

Q4: What are the specifications of the monitor and the included camera?
A4:

Monitor Specifications:

Screen size: 4.3 inch
Resolution: 480 x 234
Standard: PAL/NTSC
Video Input: AV1/AV2 (parking first)
Aspect Ratio: 4:3
Power Supply: DC 12V
Brightness: 300 nits
Contrast: 250:1
Housing: ABS
Camera Specifications:

Sensor: PC7080 1/4 Inch Color CMOS
TV system: NTSC
Effective pixels: 628 X 582 pixels
Lens Angle: 2.8mm/120°- 1.8mm/170°
Video Output: 1.0 VP-P, 75 OHM
Waterproof: IP67-IP68
Minimum illumination: 0.2Lux/F1.8 (0 Lux with LED)
Current Consumption: No more than 300mA
Power supply: DC 12V
Operation Temperature: -20℃ to 60℃ (RH95% Max.)
Storage Temperature: -30℃ to 60℃ (RH95% Max.)
Q5: How does the parking rearview priority function work?
A5: The parking rearview priority function means that the monitor will automatically start up and display the video from the rearview camera when you put your car in reverse. Once you are done backing up, the monitor will switch back to the original video source or turn off if no other input is detected. This feature enhances safety and convenience while parking your vehicle.
