DC Battery Monitor Meter, Accurate 9 Measurement Functions Monitor Meter Display Simultaneously on LCD HD Display, for Measuring Voltage, Current, Resistance, Internal Resistance, Capacity, SOC
DC Battery Monitor Meter, Accurate 9 Measurement Functions Monitor Meter Display Simultaneously on LCD HD Display, for Measuring Voltage, Current, Resistance, Internal Resistance, Capacity, SOC
- Estimated Delivery: 3 to 7 days
FREE shipping on orders over $30
SKU: SKU:T0B3950-W003699789
Product ID: 4813
Collapsible content
Product Details

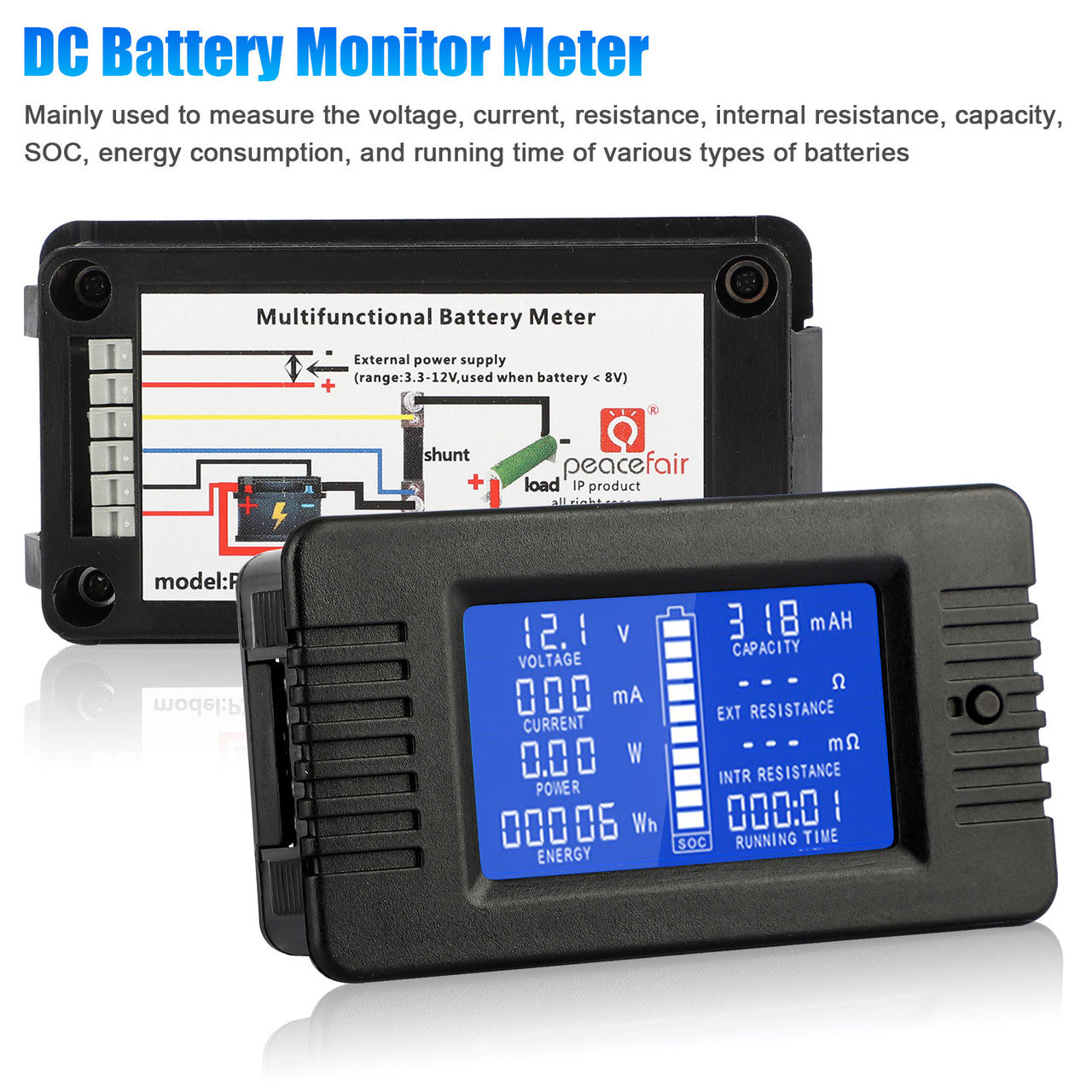

DC Battery Monitor Meter: DC battery monitor meter is mainly used to measure the voltage, current, resistance, internal resistance, capacity, SOC, energy consumption, and running time of various types of batteries, and display the measurement data through the LCD screen.

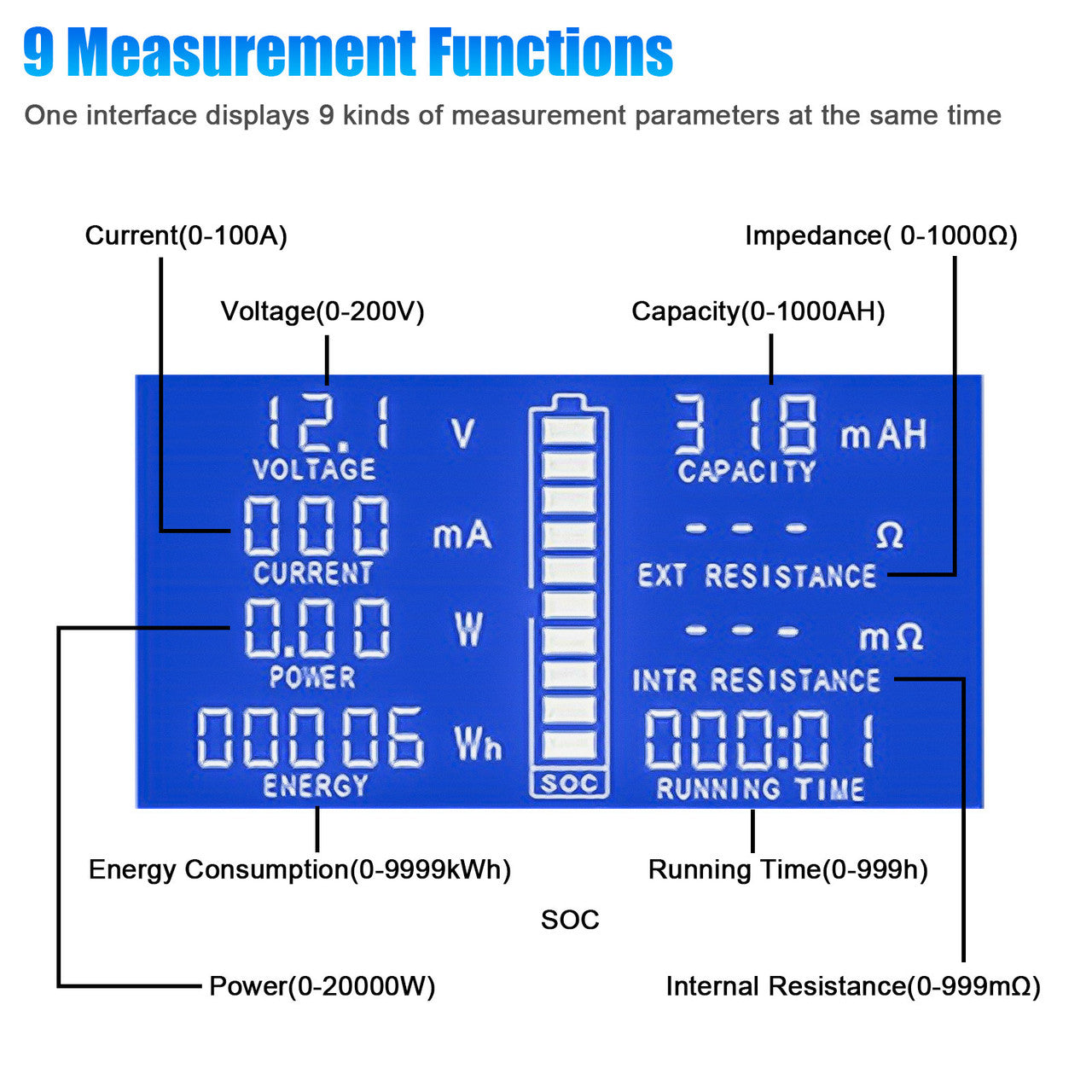

9 Measurement Functions: One interface displays 9 kinds of measurement parameters at the same time, including voltage(0-200V), current(0-100A), power(0-20000W), impedance( 0-1000Ω), internal resistance(0-999mΩ), capacity(0-1000AH), SOC, energy consumption(0-9999kWh) and running time(0-999h).

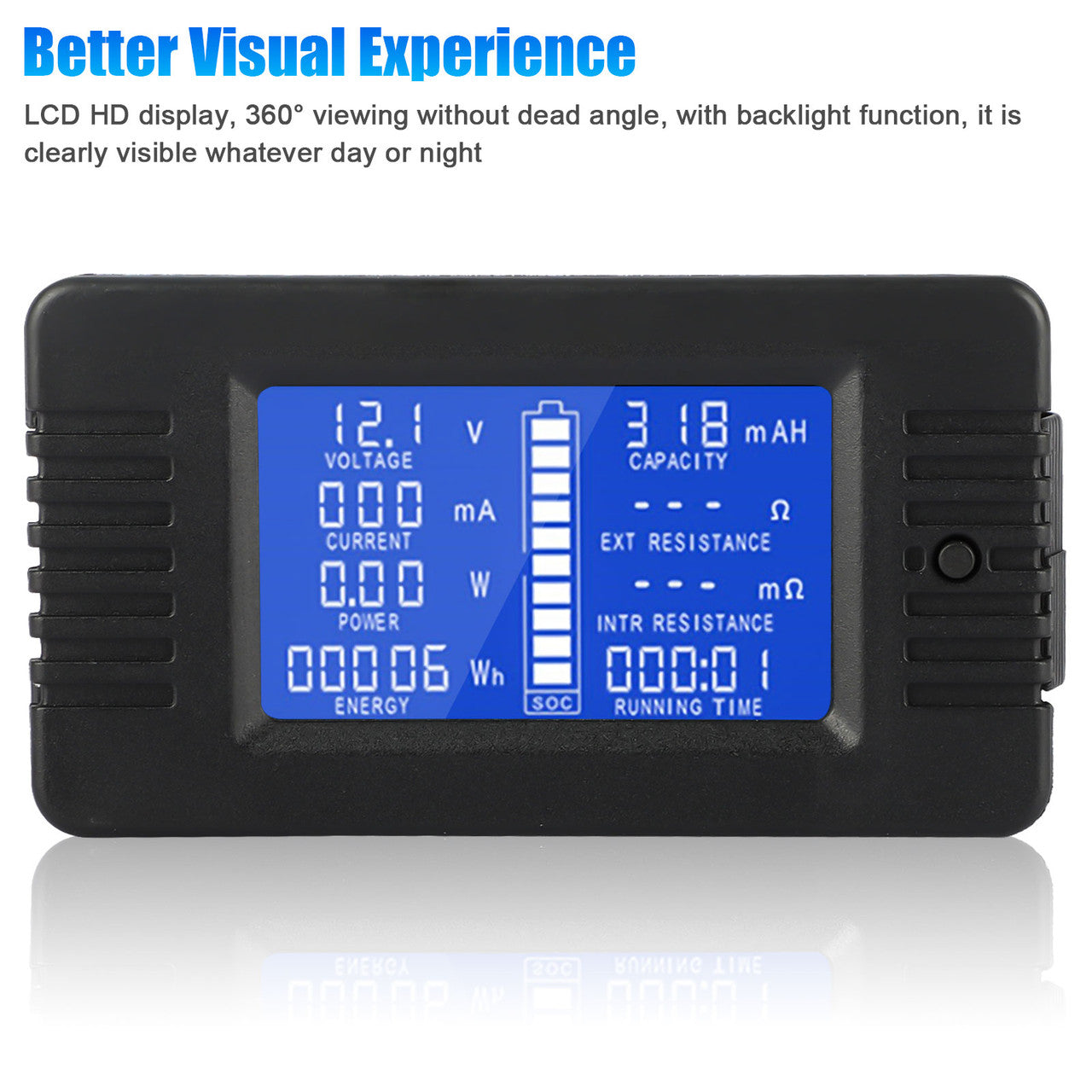

Better Visual Experience: LCD HD display, 360° viewing without dead angle, with backlight function, it is clearly visible whatever day or night

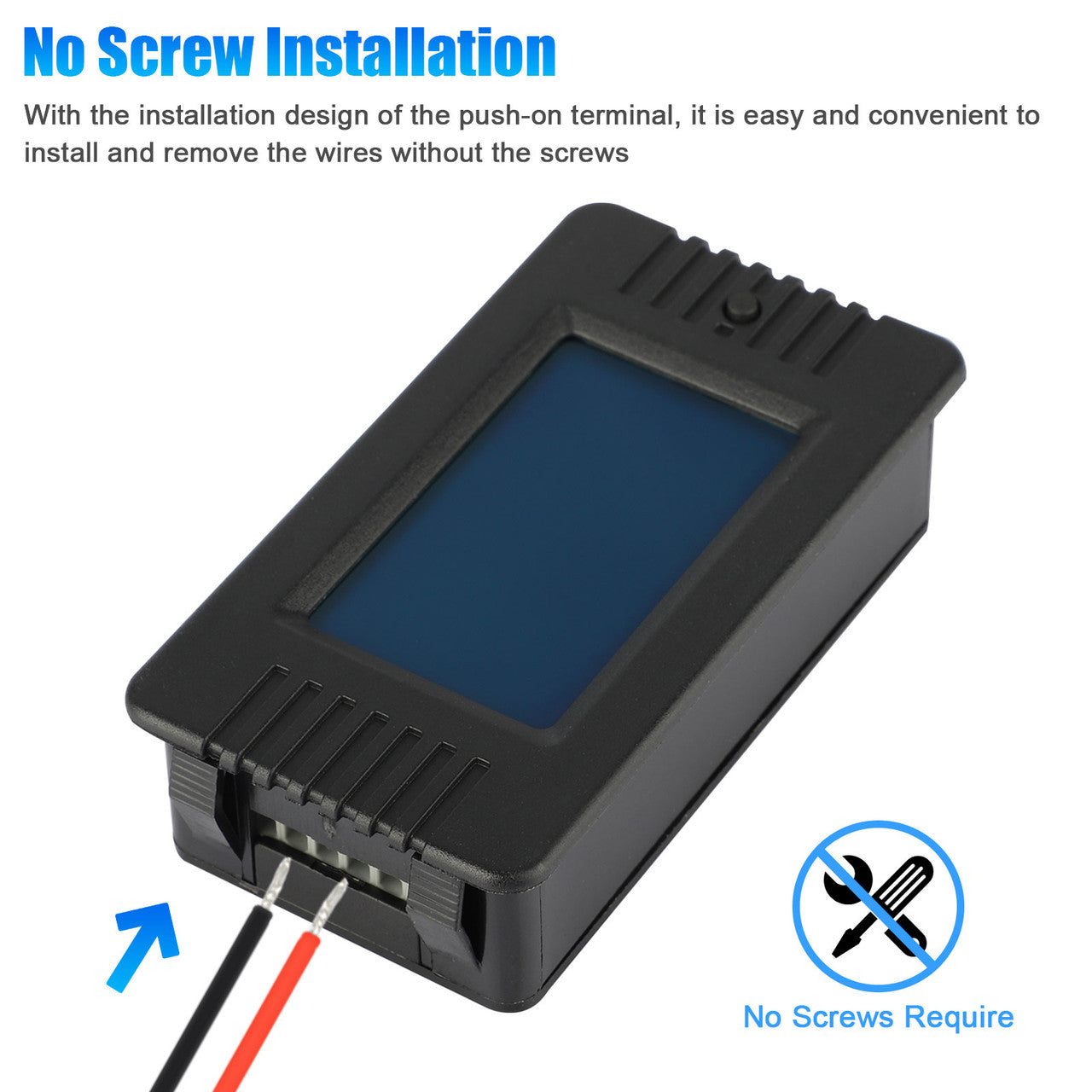

No Screw Installation: With the installation design of the push-on terminal, it is easy and convenient to install and remove the wires without the screws.
Accurate Measurement: High precision chip control, efficient and stable operation, safe and reliable welding process, measurement accuracy reaches 1%.
Wide Application: Widely used in the automobile, solar system, industrial assembly line, etc.
Specifications
Better Visual Experience: LCD HD display, 360° viewing without dead angle, with backlight function, it is clearly visible whatever day or night
No Screw Installation: With the installation design of the push-on terminal, it is easy and convenient to install and remove the wires without the screws.
Accurate Measurement: High precision chip control, efficient and stable operation, safe and reliable welding process, measurement accuracy reaches 1%.
Wide Application: Widely used in the automobile, solar system, industrial assembly line, etc.
Product Specification:
Type: DC Battery Monitor Meter
Power Measuring Range: 0-20000W
Voltage Measuring Range: 0-200V (when the test voltage is<8V, please use the independent power supply mode)
Current Measuring Range: 0-100A
Impedance Measuring Range: 0-1000Ω
Internal Resistance Measuring Range: 0-999mΩ
Capacity Measuring Range: 0-1000AH
SOC: Dump energy is display via the battery symbol, totally 10 grids, every grid present 10% energy
Energy consumption: Measuring range
Running Time: Measuring range
Measurement Accuracy: 1%
Note:
1. Wiring order cannot be wrong.
2. This meter is suitable for indoor use ONLY.
3. Applied load should not exceed the rated power or current.
4.Need a pointing tool to press the function button to prevent accidental touch.
5.The current is set according to the specification of the shunt.

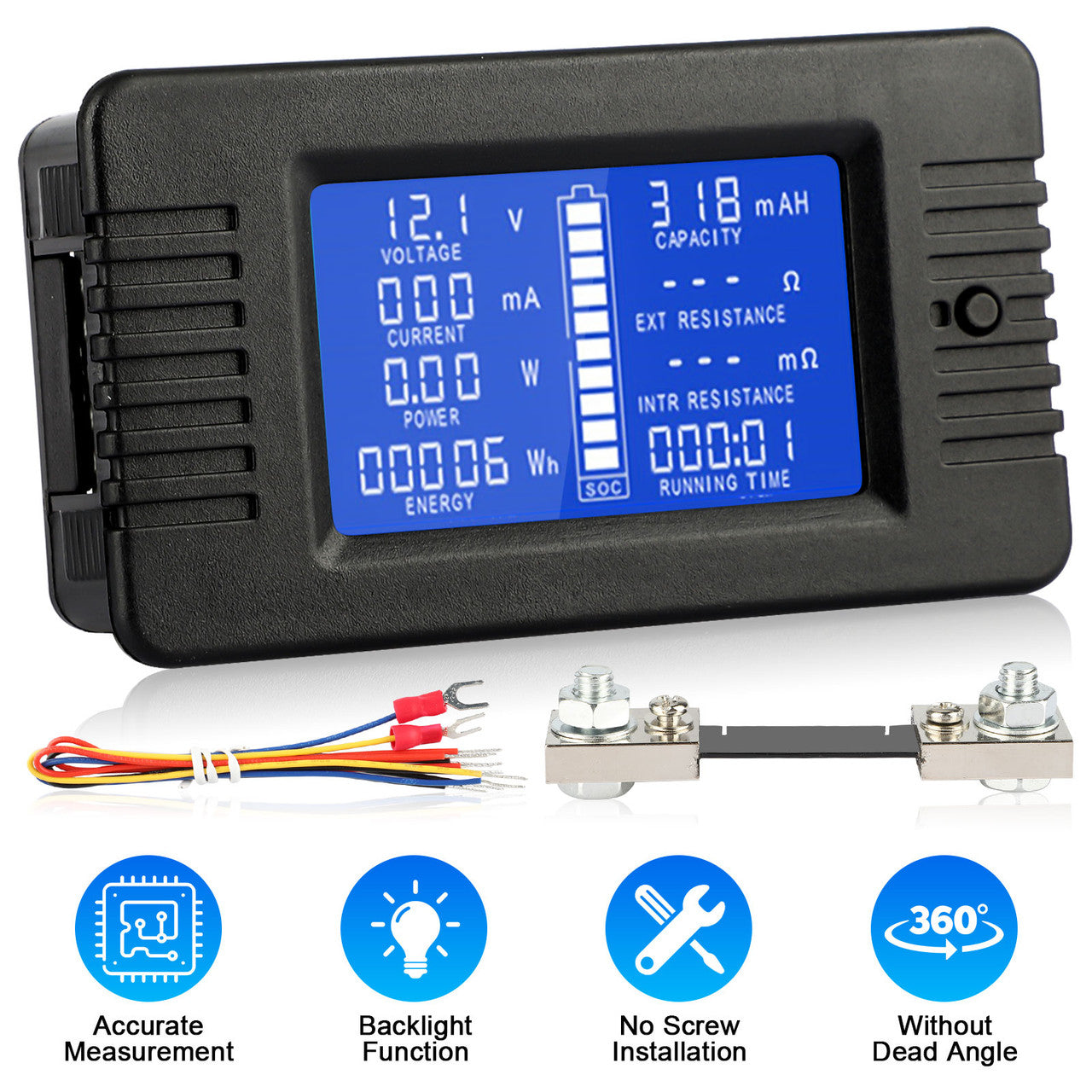

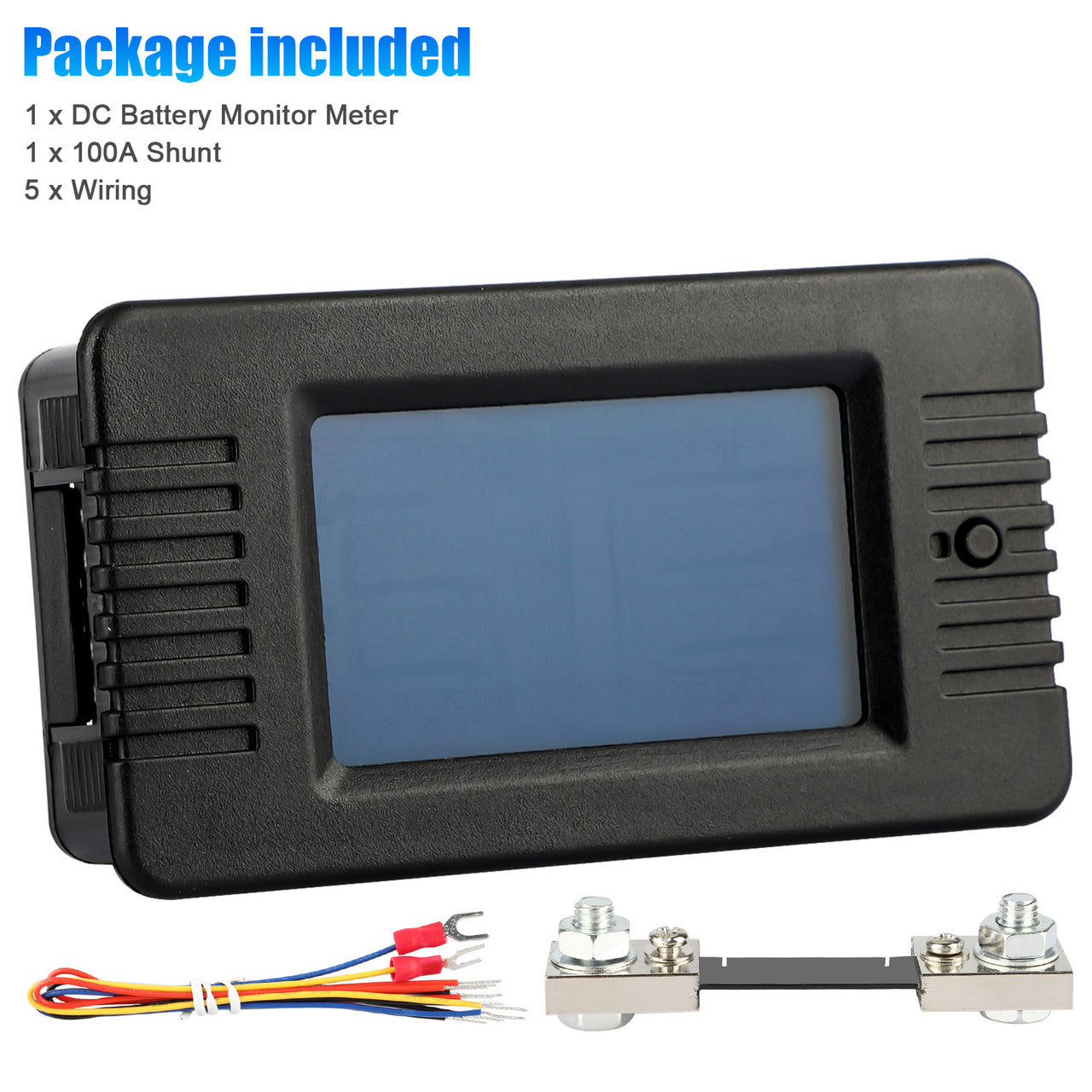

Package Includes:
1 x DC Battery Monitor Meter
1 x 100A Shunt
5 x Wiring
⚠️WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
FAQs
Q1: What battery parameters can this monitor measure?
A1: It measures voltage, current, resistance, internal resistance, capacity, SOC, energy consumption, and running time.
Q2: What is the voltage and current measuring range?
A2: The voltage range is 0-200V, and the current range is 0-100A.
Q3: Is it easy to install the monitor?
A3: Yes, it has a push-on terminal design for easy installation without screws.
Q4: Can this monitor be used outdoors?
A4: No, it is suitable for indoor use only.
Q5: What is the measurement accuracy of this monitor?
A5: The measurement accuracy reaches 1%.
This DC battery monitor meter shows all 9 measurement parameters on one screen. It’s incredibly convenient to see voltage, current, power, and more at a glance.
